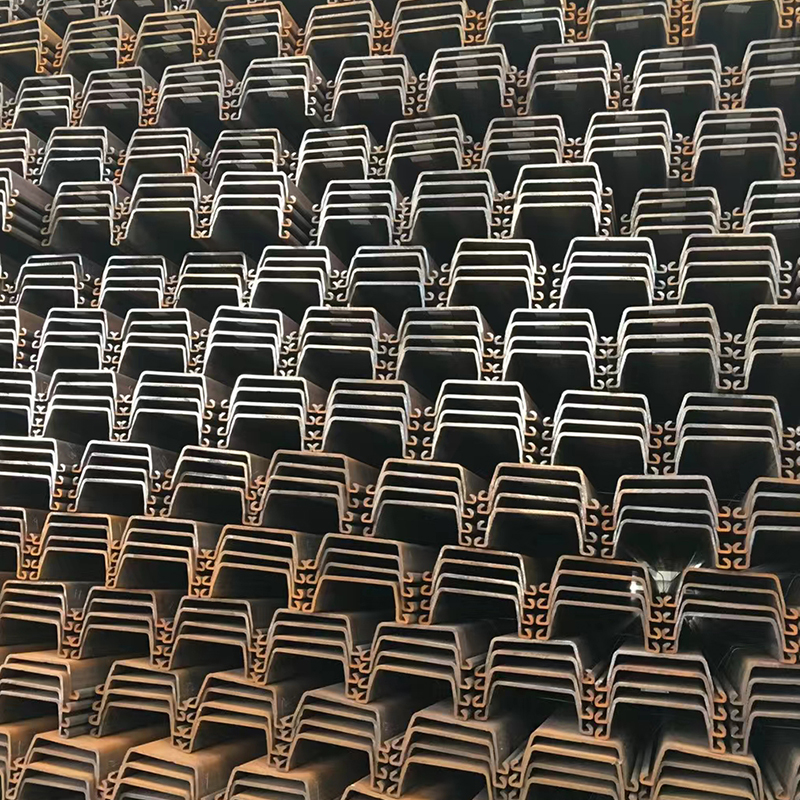

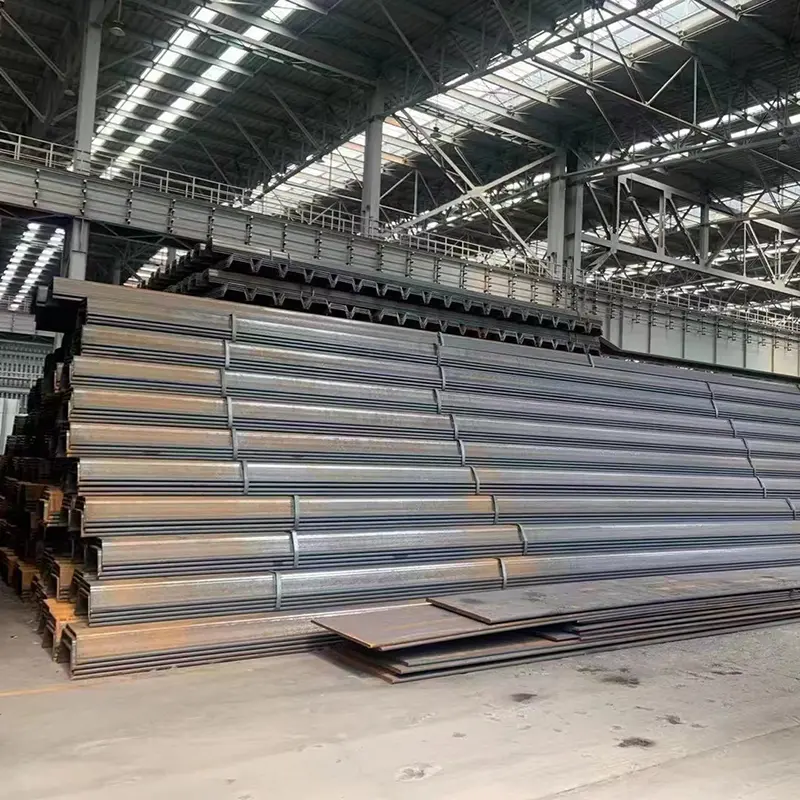

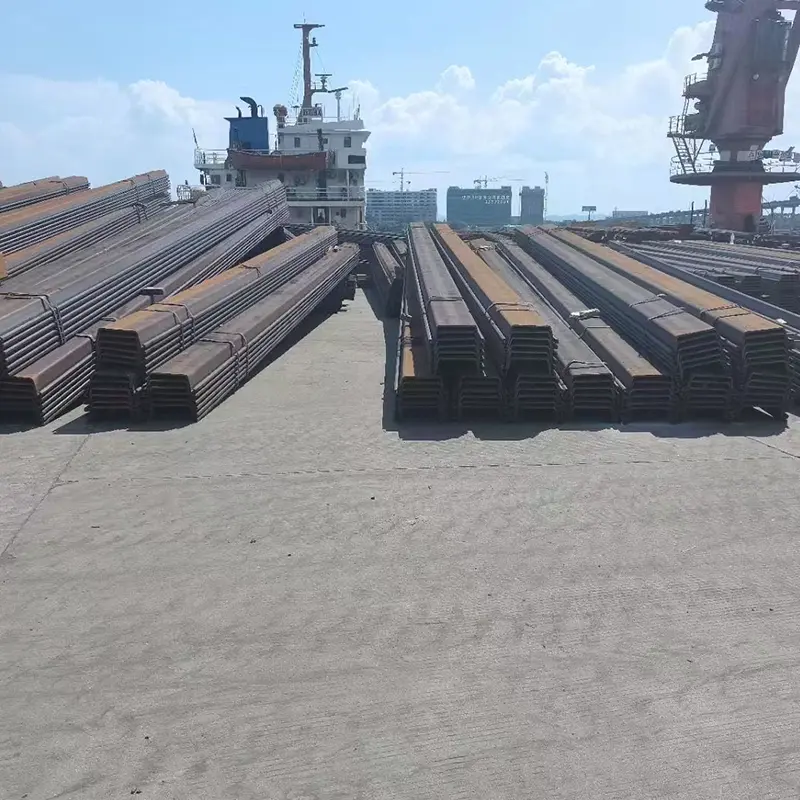

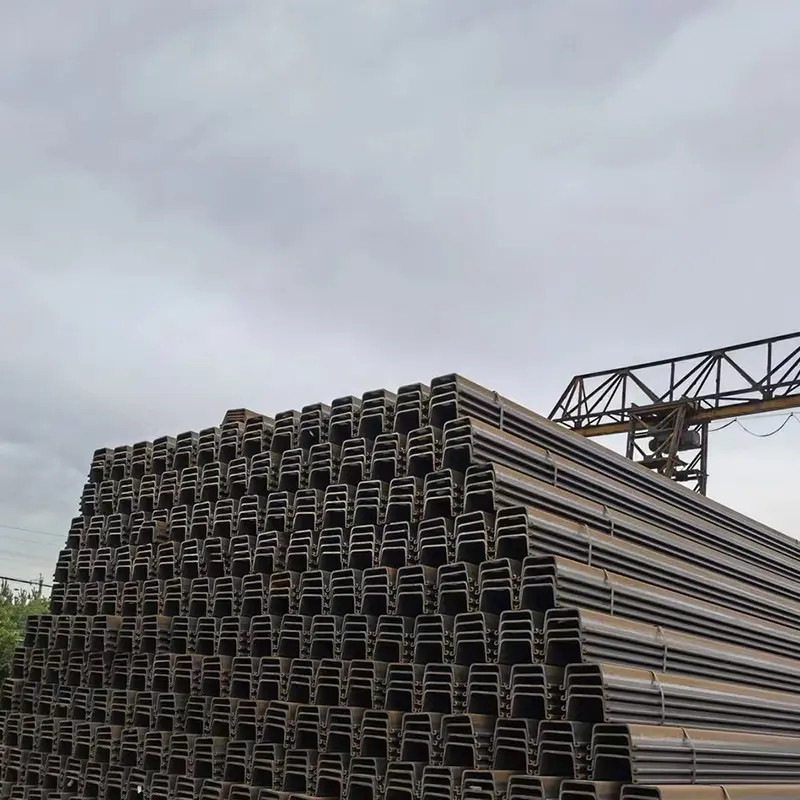

Carbon steel Larssen Steel Sheet Pile price

Carbon steel Larssen Steel Sheet Pile price

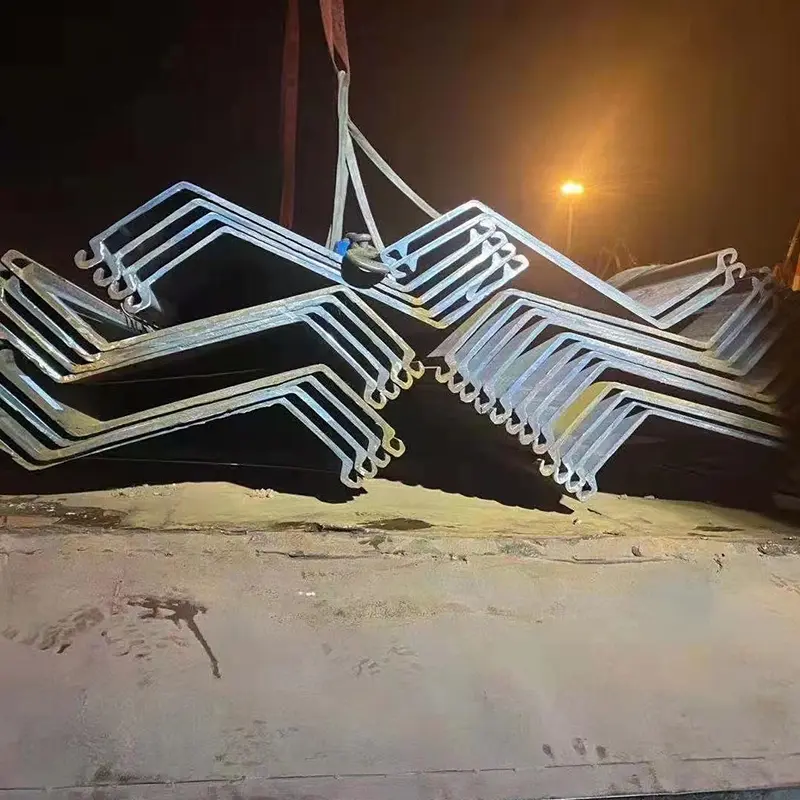

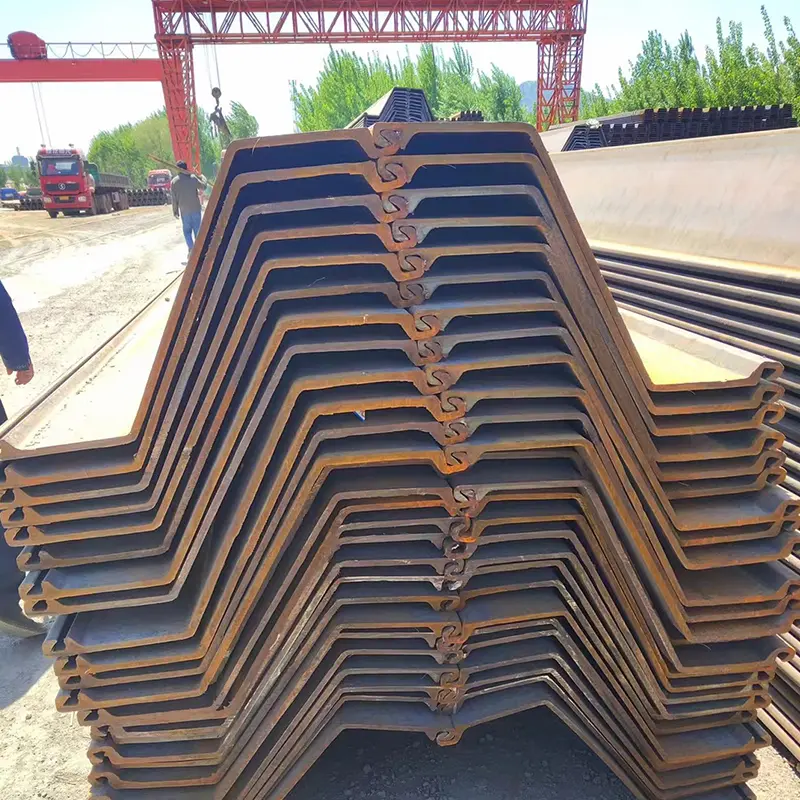

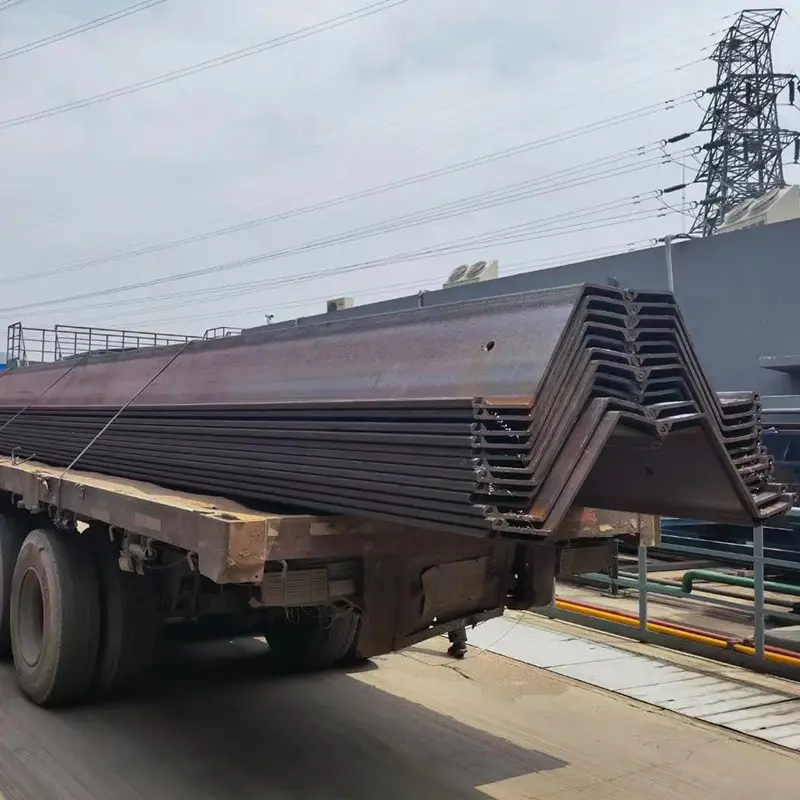

Hot-rolled steel sheet piles mainly have three shapes: U-shaped steel sheet piles, Z-shaped steel sheet piles and linear steel sheet piles, as shown in Figure 1. Among them, Z-shaped steel sheet piles and linear steel sheet piles are relatively complicated in production, processing and installation. The price is 1/3 higher than that of U-shaped steel sheet piles.

Steel sheet pile construction adopts vibration pile sinking construction, erecting single-layer double-sided guide frames, and screen-type driving method to drive steel sheet piles.

product details

Product Parameter

Type	Width	Height	Thickness	Sectional area	Weight per pile	Weight per wall	Moment of Inertia	Modulus of section
Type	mm	mm	mm	Cm²/m	Kg/m	Kg/ m²	Cm⁴/m	Cm³/m
ZDU7	750	320	5	71.3	42	56	10725	670
ZDU8	750	320	6	86.7	51	68.1	13169	823
ZDU9	750	320	7	101.4	59.7	79.6	15251	953
ZDU10-450	450	360	8	148.6	52.5	116.7	18268	1015
ZDU11-450	450	360	9	165.9	58.6	130.2	20375	1132
ZDU12-450	450	360	10	182.9	64.7	143.8	22444	1247
ZDU11-575	575	360	8	133.8	60.4	105.1	19685	1094
ZDU12-575	575	360	9	149.5	67.5	117.4	21973	1221
ZDU13-575	575	360	10	165	74.5	129.5	24224	1346
ZDU11-600	600	360	8	131.4	61.9	103.2	19897	1105
ZDU12-600	600	360	9	147.3	69.5	115.8	22213	1234
ZDU13-600	600	360	10	162.4	76.5	127.5	24491	1361
ZDU18- 600	600	350	12	220.3	103.8	172.9	32797	1874
ZDU20- 600	600	350	13	238.5	112.3	187.2	35224	2013
ZDU16	650	480	8	138.5	71.3	109.6	39864	1661
ZDU 18	650	480	9	156.1	79.5	122.3	44521	1855
ZDU20	650	540	8	153.7	78.1	120.2	56002	2074
ZDU23	650	540	9	169.4	87.3	133	61084	2318
ZDU26	650	540	10	187.4	96.2	146.9	69093	2559
ZDU30-700	700	558	11	217.1	119.3	170.5	83139	2980
For more technical parameters of steel sheet piles, please contact us for details

Excellent characteristics

As a reusable green and environment-friendly foundation structure material, hot-rolled U-shaped steel sheet piles are highly efficient, durable, simple, lightweight, and have an excellent cross-sectional shape that is sealed and anti-seepage. And unique advantages such as safety and environmental protection.Compared with other structures, it has a light structure, strong bearing capacity, and good earthquake resistance; strong water insulation, which can make the structure quickly stop water or plug leaks, impervious to penetration and easy to construct.

Major application

The first phase project of Shanghai Changxing Island Shipbuilding Base, Tangshan Caofeidian Coal Wharf and other major projects, the amount of one-time steel sheet piles for these projects has reached 10,000 tons. In addition, in the application of foundation pit enclosure, water retaining cofferdam, wharf construction, etc., such as the second phase project of Pudong International Airport, Shanghai World Expo Project, and the temporary enclosure of steel sheet piles for Hangzhou Bay Bridge are also relatively large.

Steel Sheet Pile Factory Direct Sales

Attention to detailSteel sheet piles are inspected for appearance surface defects, length, width, thickness, height, end square ratio, straightness and lock shape, and channel steel piles are inspected for appearance surface defects, length, width, thickness, height, end angle , straightness and other inspections, cut off the welded parts on the pile that affect the pile driving (there are cut holes and section defects should be reinforced).

Full range

Cold-formed steel sheet piles and hot-rolled steel sheet piles can be produced in U-shape, Z-shape, and W-shape. The manufacturing process is different. The wall thickness of cold-formed steel sheet piles is the same, and the thickness of hot-rolled steel sheet piles is different in different parts. do thick.

The length of hot-rolled steel sheet piles is generally limited, mainly 9 meters, 12 meters, 15 meters, 18 meters, 400 wide, and 600 wide. The water stop effect is generally better than that of cold bending, and the market stock is large.
